Lithe Audio Pro Series IP44 Bathroom Wi-Fi Ceiling Speaker (Pair)

Zoom

Price: £615.00

(£615.00 ex VAT)

SKU: 06511

STEP 2: CHOOSE YOUR MODULES

Plug Type:

–+
Where to buy

Description

The Lithe Audio IP44 Pro Series Ceiling Speaker delivers high-resolution audio from a ceiling speaker than can be placed in your bathroom. This ultimate in-ceiling bathroom rated active speaker, offering delivery of unparalleled wireless connectivity with the added option for a hardwired connection.

Multi-Award Winning
All-In-One Ceiling Speakers

Lithe Audio PRO Series Active Ceiling Speakers have been recognised by multiple awards an innovative UK audio brand in discreet audio.

The Ultimate Installation Speaker

Designed explicitly to be top of the Lithe Audio integrated speaker range. This award-winning in-ceiling active offering delivers many leading features, including the optional bolt-ons for WiSA integration for Dolby Atmos systems, PoE power delivery for the convenience of easy installation and the most comprehensive set of wireless & wired connectivity options.

All-in-one
solution

Amplifier, Wi-Fi, Bluetooth and ceiling speaker built-in, so all you need is power

Multi-Room
Audio

Group zones and stream high-quality audio from your phone or tablet throughout your home

Amplifier
Built-in

Powerful high efficiency 60W RMS Class D amplifier

Optical Input

Connect to your AV equipment, using the high-speed digital optical cable for a high quality audio signal

Works with Amazon Echo & Google Home devices

App-Based DSP

Calibrate and adjust the Treble, Mid and Bass individually, all from your phone.

Wireless & Wired

Dual-band Wi-Fi 5GHz / 2.4GHz or via ethernet cable (Daisy-chain to reduce cable runs)

AirPlay 2 & Chromecast Built-in

Fully certified, wirelessly stream from any mobile or tablet directly to the speaker

High Resolution
Audio

Delivering audio steaming at 192kHz / 24bits your music has never sounded soo clear.

Voice
Control

Connect to your Google Home or Alexa devices for groupable voice control

Unrivalled Connectivity

Designed to be easy to install, whilst holding convenient features for residential and commercial uses. Strong wireless and wired connections to your networks and compatibility with all your favourite streaming services. Look into our optional bolt-ons if you're looking for PoE functionality or WiSA if you want home cinema wireless Atmos setup.

Optional Bolt-Ons

Wireless technology is the future, but hardwired solutions are still essential in larger or commercial projects. The Pro Series Wi-Fi Ceiling Speaker allows you to choose between a number of high speed wireless connections, or a hardwired data connection using a CAT5 or CAT6e cabled connection.

PoE Module
(Optional Bolt-on)

Power the speakers via the PoE for wiring convenience through the networking infrastructure.

View Product

WiSA Module for Home Cinema
(Optional Bolt-on)

The Dolby Atmos in-ceiling solution for any Wisa home cinema setup.

View WiSA Bolt-Ons

Lithe Augmented Reality

Open your phone camera and scan the QR code below
to view the speaker in your room with Augmented Reality!

the technical bit

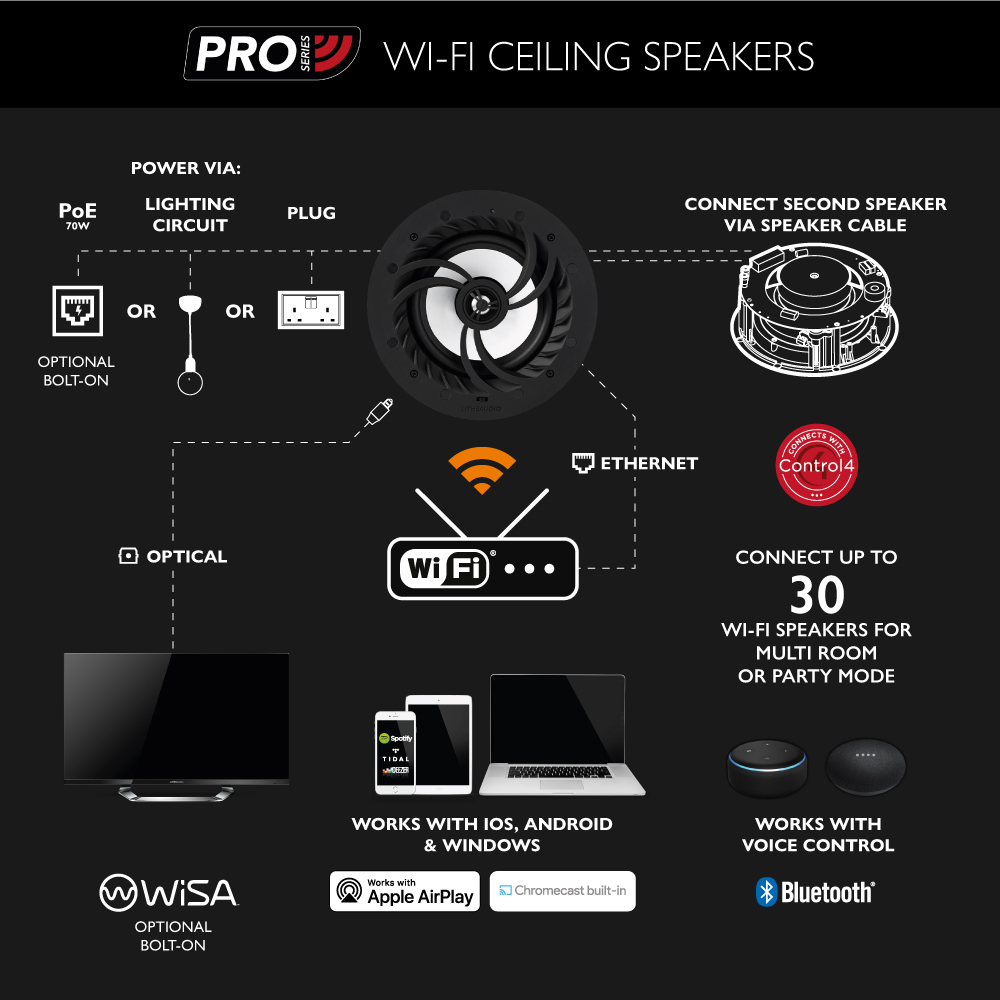

Simple to install diagram via plug socket or via lighting circuit or PoE Addon. Showing connections to Computers, Phones and smart home systems such as Control4, Loxone and Fibaro

Lithe Audio Pro series Connections diagram

Features

Multi-room Ceiling Speaker
All-in-one solution - Amplifier and Wi-Fi all built in, just add power.
Easily connect to plug socket or existing lighting circuit
Built-In AirPlay 2 and Google Chromecast
DLNA and UPnP
Connect up to 30 master speakers (30 zones)
App control via IOS or Android, full control with easy drag and drop zoning
Wireless and Wired Connection
High Res Audio
Expandable Hardware
WiSA Certified

Connectivity

Wi-Fi certified 2.4Ghz / 5Ghz (802.11a/b/g/n/ac)
Apple AirPlay 2 certified
Google ChromeCast built-in certified
Spotify connect certified
Bluetooth
Optical
Ethernet Connection In / Out
DLNA/uPnP connections
Works with Alexa
Works with OK Google
WiSA with optional bolt-on
Control4, Nice/Elan, KNX, Fibaro & Loxone Drivers

Audio spec

Woofer: 6.5" Polypropylene Cone
Tweeter: 0.75" Titanium Cone
Mono/Stereo Switch
RMS Power: 60W RMS (2x 30W)
Impedance: 8 Ohms nominal
Sound Quality THD+N 0.009%, 55Hz-20kHz (+/- 3dB)
Sensitivity (1W/1m): 90dB
Line In (Optical), auto-detecting
Type: Class D (Digital)
Audio Compression: 192Khz/24bits
Woofer: 6.5” Woven Glass Fiber cone
Tweeter: 0.75” Titanium Cone

Multi room Audio

Connect up to 30 master speakers (30 zones)
Spotify Connect (Premium Users Only)
Play audio from Spotify, Deezer, Tidal, Tune in, Napster, Qobuz, Palco MP3 and SoundMachine
Play music to a group or individual rooms
Group, mix and match multi-branded speakers with AirPlay 2 and Chromecast

Speaker spec

210mm cut-out diameter
Weight: 3.7kg
Dimensions: (W x D) 230 x 110 mm
Power Input Supply : 100 - 240V, 50/60Hz / 2A
Transformer Output Supply : DC24V / 2.5A
Standby power: 1.3W / 0.02A
Connected power: 1.5W / 0.03A
Playing Music: 2.8W - 10.5W / 0.03A - 0.09A
Operating Temperature 0º to 40ºC (32º to 104ºF)
Storage Temperature -20º to 70ºC (4º to 158ºF)

What's in the box

Pro Series IP44 WiFi Ceiling Speaker
Passive Ceiling Speaker
10m Speaker Cable
Power Supply
Cutting template
Instruction manual

Optional Bolt-Ons

Lithe Audio PoE Module Bolt-On
Lithe Audio Pro WiSA Bolt-On
Lithe Audio WiSA SoundSend Transmitter
Instruction manual

Installation Guide

Specification Sheet

Cutout Guide

Perfect for

All-in-one solution makes these unique speakers perfect for residential and commercial applications

Common questions

Please see below most commonly asked questions, any further answers can be found within support

How easy are the speakers to setup?

Our Multiroom speakers need to be setup by pairing the device via our Lithe Audio App, which will walk you through step by step how to connect them to your network.

Do the speakers need to be connected to separate amplifier?

The speaker requires NO additional amplifiers, router, controllers, mainframes, all you need is within the box. Saving you space and money, Just download the app and connect power.

Can the Multiroom ceiling speakers be used in the bathroom?

Yes our bathroom rated version is IP44 rated for bathroom use. Do not place speaker directly above shower unit, bath, sinks or radiators.

Are the Multiroom speakers easy to wire to mains supply?

Yes, you can connect the power driver to a main socket (plug not included) OR connect to the lighting circuit either in the existing ceiling rose or junction box by wiring into a single plug socket or terminating into a fused spur, with a 3A rated fuse. (Make sure that the live is not connected to the switched Live otherwise, the speakers will only become active when switching on lights) All electrical wiring must be done by a qualified electrician or similarly qualified person. Instructions enclosed within the box advise how to fit the speaker, if unsure seek a qualified electrician to avoid damage to the product and for your safety.
