KNX Integration For
Lithe Audio Pro Series and Wifi Ceiling Speakers

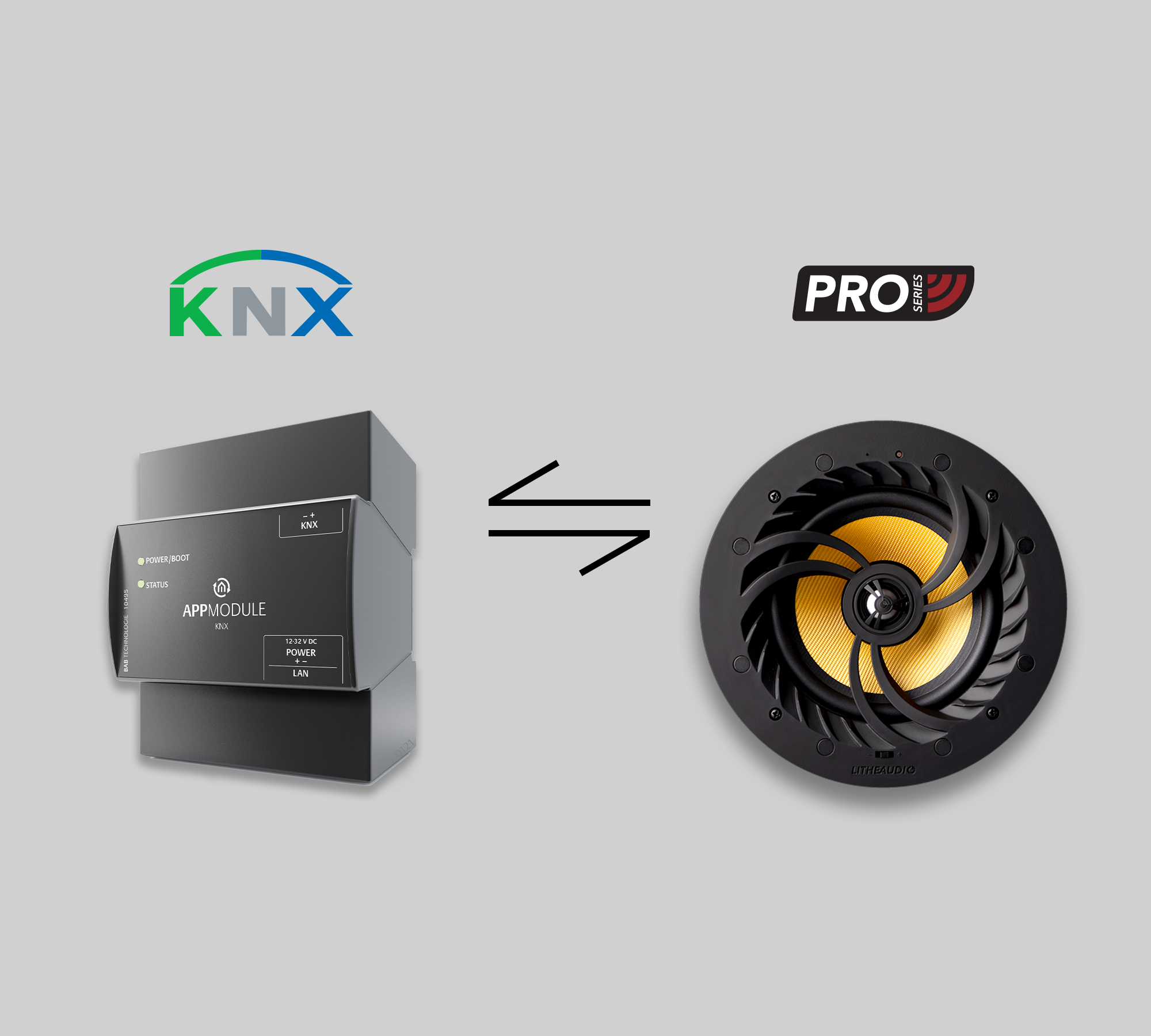

In an exciting development for custom installers, Lithe Audio and Bab Technologie developed a integration that will give KNX users control over their Award-Winning
Lithe Audio Pro Series and Wi-Fi Ceiling Speakers via the Bab APPModule



Download from BAB marketplace

Driver Spec Sheet





DRIVER FEATURES

Features and Functions:

  • Easy integration in KNX based home automation systems

  • Works with 12 end points, with 5 being able to be grouped

  • Play / Pause / Stop / Skip Previous / Skip Next

  • Playback controls including shuffle and repeat

  • Current playing song meta data: Artist, album, title, playlist, source

  • Speaker settings: Name, channel selection

  • Party Mode
  •
  • Group Controls
  •
  • Playback Playlist Controls
  •
  • Browse Streaming Sources ( Deezer, Tidal, Amazon Music, Qobuz, Radio and Podcasts )

  • Built-in internal announcements - 5 sounds e.g. Doorbell, Security Alarm, Chimes. (PRO Series Only)

  • Streamimg Services: Tidal, Amazon Music, Deezer, Qubuz, Local Music Network, Radio, Podcast.

  • Configurator Device Types:

  • Zone Controller

  • Media Renderer Zone Controller Sources

  • AUX Input

  • Streaming (Zone Controller)

  • Zone Settings Page - For Bluetooth controls, master / slave / free controls / shuffle / repeat controls

  • Configurator Config Strings

  • IP Address (string read / write) Configurator Drop Down

  • Auto Discover Enabled (True / False) Commands

  • Shuffle On / Off

  • Repeat None / 1 / All

  • Set Master / Slave / Free

  • Enter / Exit Pairing

  • Enter / Exit Connectible State

  • Disconnect

  • Auto Connect

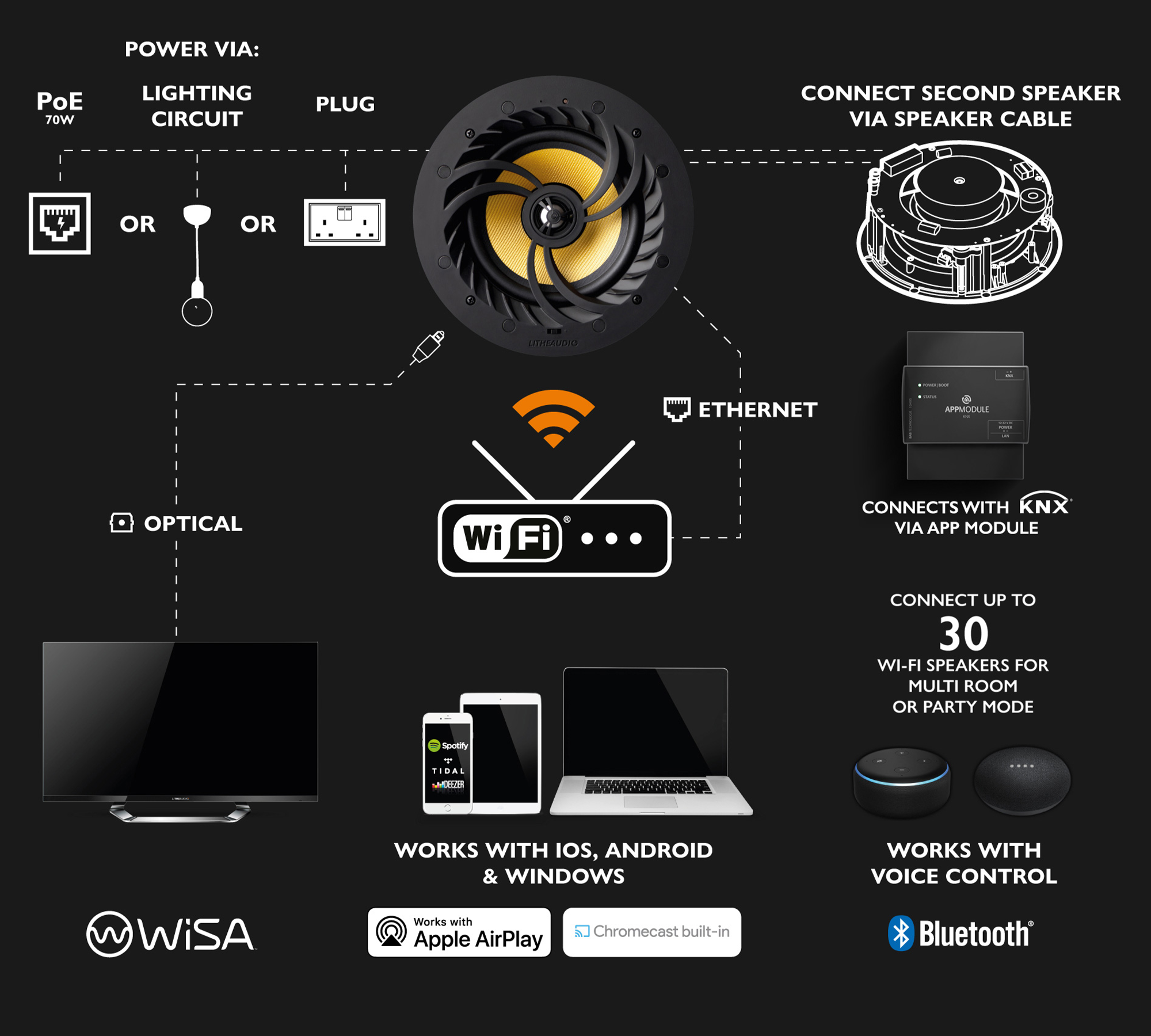

KNX speaker connection diagram

Common Questions

  • What hardware will I need for this integration?

  • The Babtech APPModule and Lithe Audio WiFi Ceiling Speakers (V2) or PRO Series Ceiling Speakers


  • Can I group the Lithe Speakers for Multi-room?

  • Yes, you can group up to 5 Speaker pairs for multi-room


  • How do the built-in chimes/tones work?

  • This feature works on PRO Series ceiling speakers only. It can directly initiate the internal mp3 built into the speaker to reduce latency and ensure local delivery of the tone without any internet connection.

    For example, the speaker can be used as a doorbell announcement throughout the home, and it can be used with security PIR / CCTV to provide audible deterrents using countdowns, security alarms, and voice deterrents.

    Make your project unique and playful. Never shout dinner time for the kids, enable a button to trigger the announcement within each bedroom and living areas.

  • Does the KNX LITHE/BABTECH driver support browsing of music services?

  • The driver supports the ability to browse streaming sources: Amazon Music, Deezer, Qubuz, Tidal, Local Music Network, Radio, and Podcast. (searching is not supported currently).

    Note that it does not support browsing of Spotify, you will need to use the Spotify app / Spotify Connect to stream content to the speaker.


  • Where can I buy the Bab Technologie APPModule?

  • Bab Technologies have distributors around the world. Click company below or Email us we will put you in touch with a local reseller: sales@litheaudio.com


  • Where do I get the Driver from?

  • This driver is available to purchase on the Babtech APPModule marketplace See link below:

    Download from BAB marketplace
